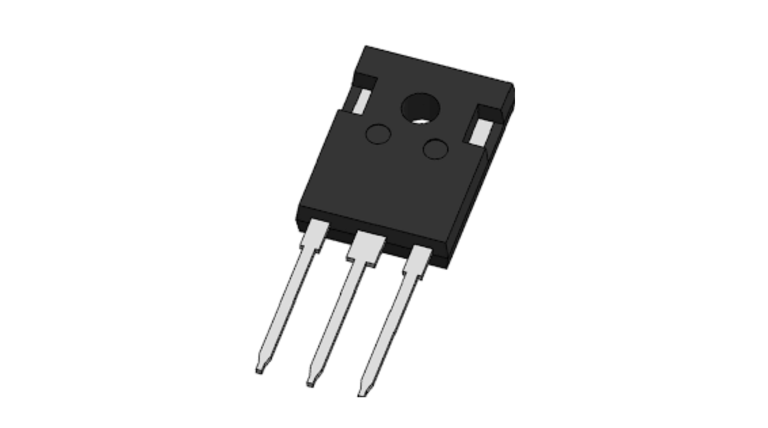

JJM - JMH65R040PSFD: High Power N-channel Transistor

The MOSFET JMH65R040PSFD is designed to operate efficiently in applications requiring high voltage and large current. With a drain-source voltage (VDS) rating of up to 650V, it is well-suited for high-voltage power supply applications such as PFC, LLC, flyback, and industrial power converters. The product ensures safety and excellent isolation, even in environments with fluctuating voltage.

With a continuous drain current of up to 53A, the product can handle heavy-load systems, from server power supplies and EV chargers to power amplifiers, telecommunications, and more.

Specifications:

– Drain-to-Source Voltage (VDS): 650V

– Continuous Drain Current (ID): 53A at 25°C, 33A at 100°C

– Drain-Source Resistance (RDS(ON)): 34mΩ at VGS = 10V

– Gate-to-Source Voltage (VGS): ±30V

– Power Dissipation (PD): 278W at 25°C, 111W at 100°C

– Operating Temperature: -55°C to 150°C

Advantages:

– High Withstand Voltage

– Strong Load Current

– Low Power Loss

– Excellent Durability

– Fast Switching Time

Applications:

– Switching Power Supply (SMPS)

– PFC, LLC and Flyback converter

– Fast Charging System, Telecom Power Supply

– TVs, computers, high-end consumer appliances

Learn more: JMH65R040PSFD
