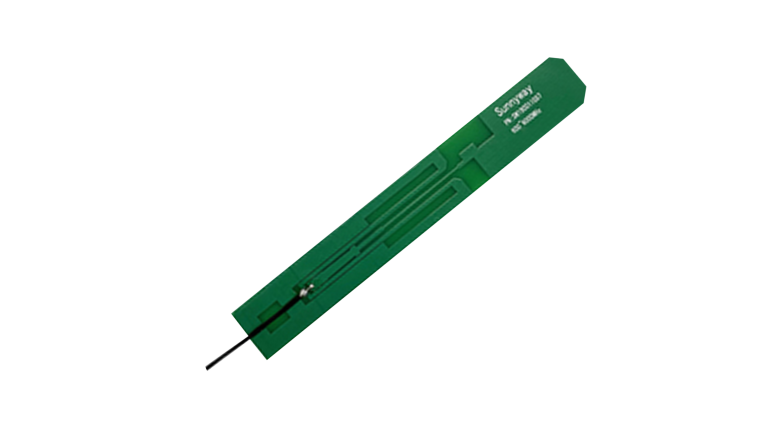

Sunnyway – SWP001: A comprehensive antenna for the smart connectivity era

As IoT and 5G continue to grow rapidly, ensuring stable and flexible connectivity is crucial for all smart device systems. With the SWP001 antenna, Sunnyway offers a comprehensive, optimized connectivity solution for modern applications – from homes to smart cities. Designed with a wide frequency range from 600 MHz to 6000 MHz, the SWP001 supports all major connection standards such as 5G, 4G, 3G, 2G, and is optimized for NB-IoT and CAT M1 technologies – the foundation for large-scale IoT systems that require high stability.

The SWP001 delivers powerful performance with a VSWR < 3.5 and a gain of up to 4.5 dBi, ensuring better signal quality, stable and fast data transmission, and minimizing network congestion or interruptions. With a compact size of only 112.5 x 16.2 x 0.8 mm, the SWP001 is easy to integrate into various IoT devices with limited space while maintaining outstanding performance.

Specifications:

– Standard5G/4G/3G/2G/NB-IoT/CAT M1

– Frequency (MHz)600~6000

– VSWR<3.5

– Peak gain (dBi)-3.0~4.5

– Dimensions (mm)112.5 (L) x 16.2 (W) x 0.8 (H)

– Cable length (mm)101

Advantages:

– Powerful Performance – Optimized Design

– Ultra-compact design, easy to integrate

– Optimal performance, strong signal

Applications:

– Smart home, smart agriculture

– Self-driving cars

– Remote medical devices, IoT,…

Learn more: SWP001
