Nuvoton – KA44370A: Compact 48V Driver IC for Smooth and Stable BLDC Motor Control

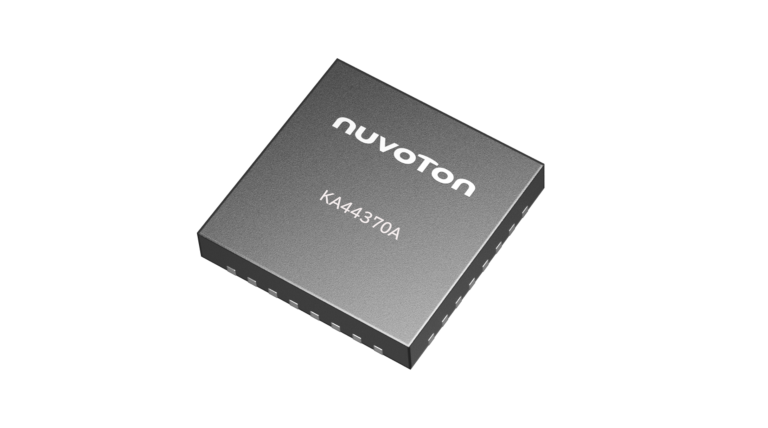

Nuvoton introduces the KA44370A, a compact 1-phase motor driver IC with a tiny 4x4mm footprint, yet powerful enough to drive demanding applications in modern electronic devices.

More information

Send Inquiry Purchase

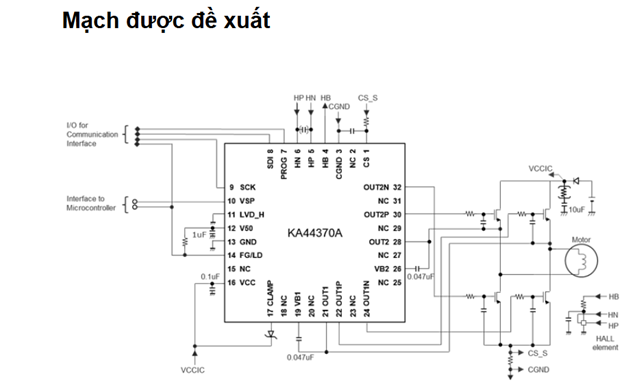

The KA44370A is a gate driver IC designed for single-phase BLDC motors. Despite its ultra-small 4x4mm QFN package, it can directly drive external MOSFETs operating at up to 48V. This IC integrates a suite of safety features from Nuvoton, including over-temperature protection (OTP), overcurrent protection (OCP), phase lock detection, and motor fault detection.

Its sensorless design (no Hall sensors required) enables precise motor control while significantly reducing overall system cost. The KA44370A ensures smooth switching with low noise, making it ideal for applications that require stable, silent motor operation.

Thanks to Nuvoton’s smart design, the IC also supports low-power idle states, helping to prolong system life and reduce maintenance costs.

Specifications

  • IC Type: Single-phase BLDC Motor Driver

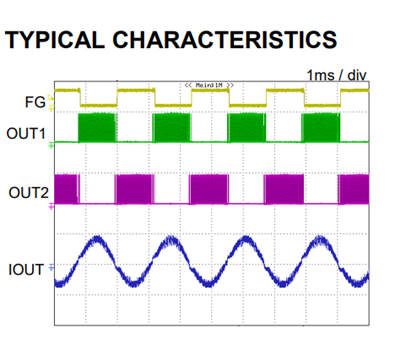

  • Control Method: A2PRaS Sinusoidal PWM
  • Control Interface: PWM / DC
  • Ron (Ohm): Pre-Dr
  • Operating Voltage: 12V / 24V / 48V
  • Temperature Range: -40°C to +105°C
  • Package: QFN32L 4x4mm, 0.4mm pitch
  • Output Drive Current: Up to ~1.3A (depending on external MOSFET @ 48V)
  • Protections: UVLO, OCP, OTP, STP (Rotor Lock Protection)
  • Programming Interface: Embedded OTP ROM for motor parameter configuration

Advantages

  • Integrated 48V MOSFET gate driver in a compact 4×4mm package
  • Advanced sinusoidal phase control with A2PRaS technology
  • Up to 28–30% energy savings compared to conventional drivers
  • Reliable startup even with reverse-rotating motors
  • Wide operating voltage range: 8–76V (up to 100V max)
  • High durability: Withstands temperatures from −40°C to 105°C

Applications

  • 1U/2U cooling fans
  • Base station cooling systems
  • Battery and inverter cooling in energy storage systems (ESS)
  • Small water pumps, vacuum systems, electrical cabinet cooling
  • Smart air purifiers, compact integrated cooling units
  • Single-phase fan motors for servers
  • Cooling systems for compact AI or edge servers

Learn more: KA44370AHSFPAR003A
