LEM - IN 1000-SHF: Outstanding current sensor using Fluxgate technology

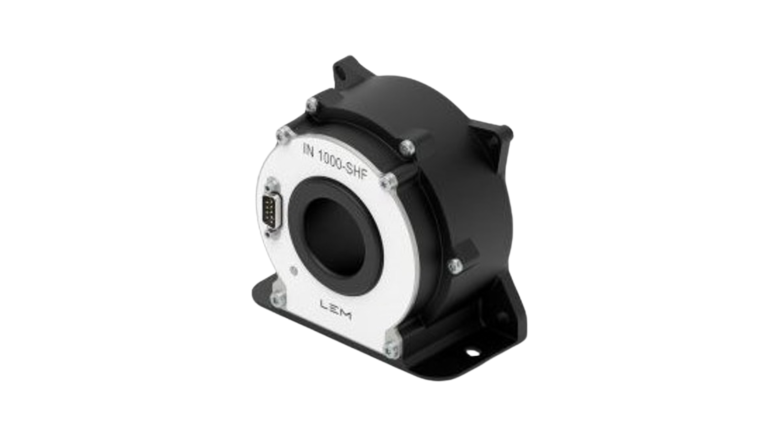

The IN 1000SHF is a new generation current sensor using advanced closed-loop Fluxgate technology, specifically designed for applications that require high performance, instant response, and absolute accuracy. The product offers a wide bandwidth of up to 2.5 MHz, with lightning-fast response, making it ideal for high-frequency measurement systems, high-speed motor control, or precision testing devices like test benches.

The IN 1000SHF is ultra-compact, with only a few ppm, providing near-perfect linearity, low thermal drift, and ensuring reliability even during long-term operation. Additionally, its latency is under 1 nanosecond, improving system response speed and supporting applications requiring micro-level time synchronization, such as modern power converters. The IN 1000SHF is designed with D-sub connector standards, LED status indicators, and a warning function, making it easy to integrate and operate safely in application devices.

Specifications:

– Rated current: 1000A

– Maximum measured current: 1500 A

– Output signal: 1 A (analog current output)

– Conversion ratio: 1000 A ➝ 1 A (factor 1000:1)

– Power supply: ±15 V DC (±5%)

– Power consumption: ≤ 3.5 W

– Bandwidth (–3 dB): 2.5 MHz

– Delay: < 1 ns (at 10% of rated current)

– Linearity: ≤ 3 ppm

Advantages:

– Ultra-wide bandwidth – up to 2.5MHz

– Ultra-small error – only a few ppm

– Latency under 1 nanosecond

– Optimized for professional measurement environments

Applications:

– Electrical measurement laboratories & testing

– EV test systems and high-power converters

– Research centers for power electronics applications, renewable energy

– Applications in MRI and medical devices requiring high precision

Learn more: IN 1000SHF
