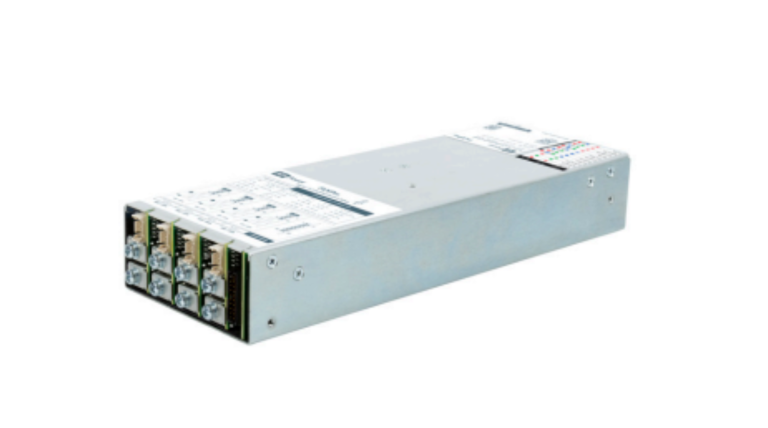

XP Power - FLX1K3 – FLXPro Series: 1.3 kW AC-DC Power Supply with Intelligent and Flexible Capabilities

FLX1K3 from XP Power’s FLXPro Series — an intelligent, powerful, and flexible AC-DC power solution. With a compact size of only 254 × 89 × 41 mm, the FLX1K3 delivers up to 1.3 kW at high voltage (1.0 kW at low voltage) – achieving a power density of up to 23.2 W/in³. The SiC/GaN technology combined with a fully digital architecture allows the FLX1K3 to reach an efficiency of up to 93%, reducing cooling requirements, saving energy, and operational costs, with optimal performance and minimal heat dissipation.

With up to 4 output modules and voltage adjustments from 9 V to 66 V, ±10–40% adjustment, it supports parallel or series configurations as required, and can operate “live” without the need to power off. The FLX1K3 is equipped with a full digital interface, supporting PMBus via I²C, real-time control and monitoring; it features BlackBox Snapshot, data logging, and multi-layer security to reduce maintenance time and optimize system performance. The product meets 2 MOPP certification for medical applications, complies with IT standards, SEMI F47, with 4 kVAC input-output isolation, and supports operation in harsh environments from –20°C to +70°C.

Specifications:

– Output power – 1.3kW (with high VAC), 1.0kW (with low VAC)

– Dimensions 254 × 89 × 41 mm (1U x ¼ width)

– Maximum efficiency Up to 93%

– Input voltage range AC 90 – 264 VAC (1 phase)

– Number of output modules Up to 4 hot-swap modules

– Output voltage (optional) From 9 V to 66 V (adjustable ±10–40%)

– Digital communication PMBus v1.3 via I²C

– Monitoring function Voltage, current, power, temperature, operating status

– Protection Over voltage, over current, over temperature, short circuit, module fault

– Special function XPInsight™, Black Box Snapshot™, configuration without power off

– Intelligent control/management Remote control, ON/OFF each module, set current/voltage limit

– Operating temperature -20°C to +70°C (full load to +50°C)

– Electrical isolation In – Out: 4000 VAC; In – GND: 1500 VAC; Out – GND: 1500 VAC

– Safety compliance IEC60601-1 (2 x MOPP), IEC62368-1, EN61000-4, SEMI F47

– Cooling Built-in fan, automatic speed control

Advantages:

– Huge power in a super slim 1U design

– Optimal performance, low heat dissipation

– Smart management – iPSU + XPInsight UI

– Extremely customizable

Applications:

– Medical devices and home care

– Semiconductor and plasma technology

– Automation, robotics, 3D printing

– Renewable energy & EV charging

– Instrumentation & research labs
